Winkel

Length: 42,00 m
Max. hopper capacity: 700 m³
Max. dredging depth: 20,00 m

Length: 25,40 m
Beam: 8,50 m

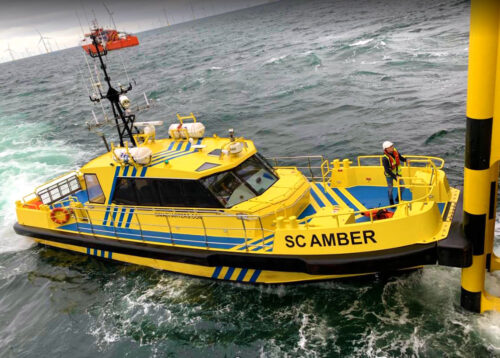

Length: 17,34 m
Beam: 5,20 m

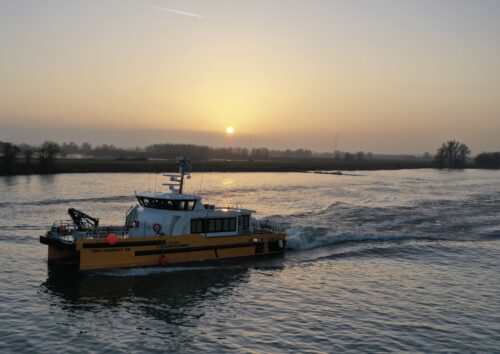

Length: 24,00 m
Beam: 7,00 m

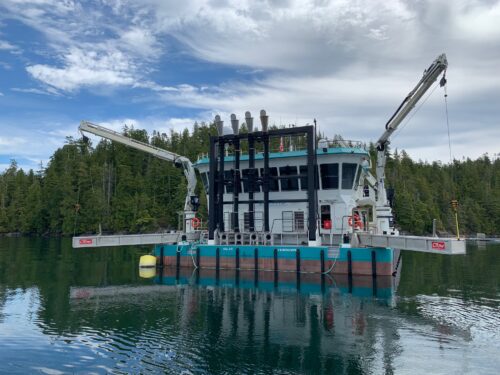

Length: 35,00 m
Beam: 11,20 m
Depth at side: 2,50 m
Max. Draught: 1,40 m

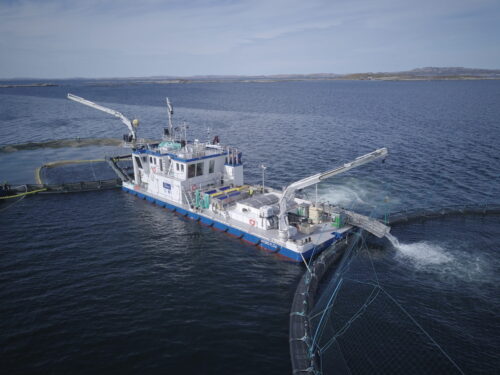

System type: Hydrolicer system
Power: 1440 kW

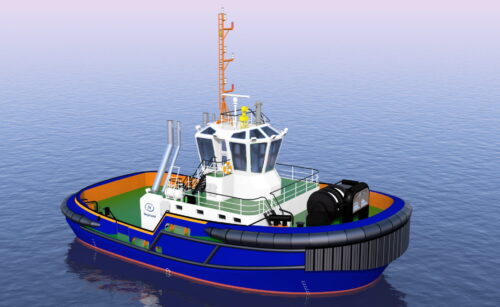

Length: 24,63 m
Beam: 12,00 m
Draft: 5,50 m
Bollard pull ahead: 75,0 tons
Bollard pull astern: 68,0 tons
Speed: 12,0 knots

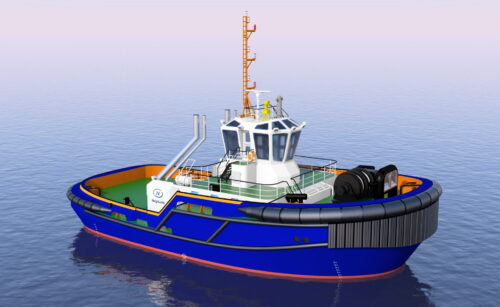

Length: 28,74 m
Beam: 13,00 m
Draft: 5,65 m
Bollard pull ahead: 85,0 tons
Bollard pull astern: 78,0 tons
Speed: 12,0 knots

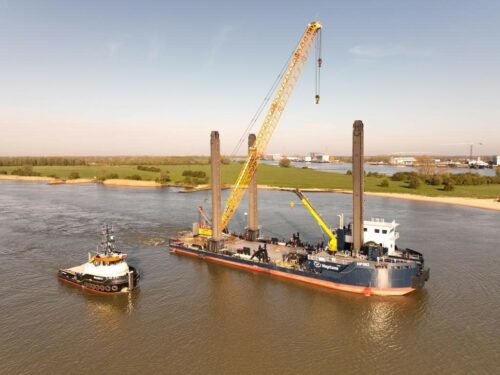

Beam: 19,00 m
Spud leg length: 35,00 m

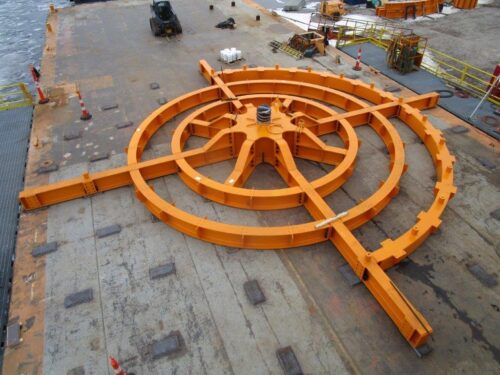

Cable load: 10.000 tons

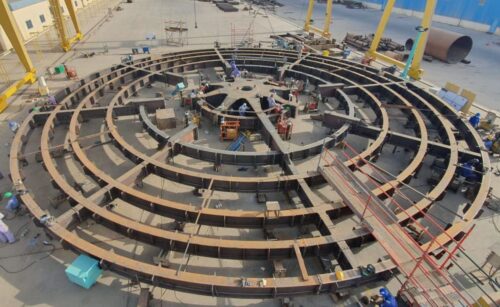

Outer diameter: 32,00 meters
Length: 4,00 meters
Stacking height: 6,50 meters
Line speed: 15 m/min

Cable load: 1.500 tons
Length: 2,50 meters
Outer diameter: 14,00 meters
Stacking height: 6,50 meters
Line speed: 15 m/min

Cable load: 2.500 tons
Outer diameter: 18,00 meters
Length: 4,00 meters
Stacking height: 6,50 meters
Line speed: 15 m/min

Cable load: 4.000 tons
Outer diameter: 23,00 meters
Length: 4,00 meters
Stacking height: 6,50 meters
Line speed: 15 m/min
